ACUS - M1 Plus

excl. VAT and shipping costs

ACUS - M1 Plus - multi is backordered and will ship as soon as it is back in stock.

With the M1 Plus you get the most advanced wireless tattoo machine available!

Ø-Grip: 40 mm
Length: 128 mm
Weight: 207 g (incl. battery)

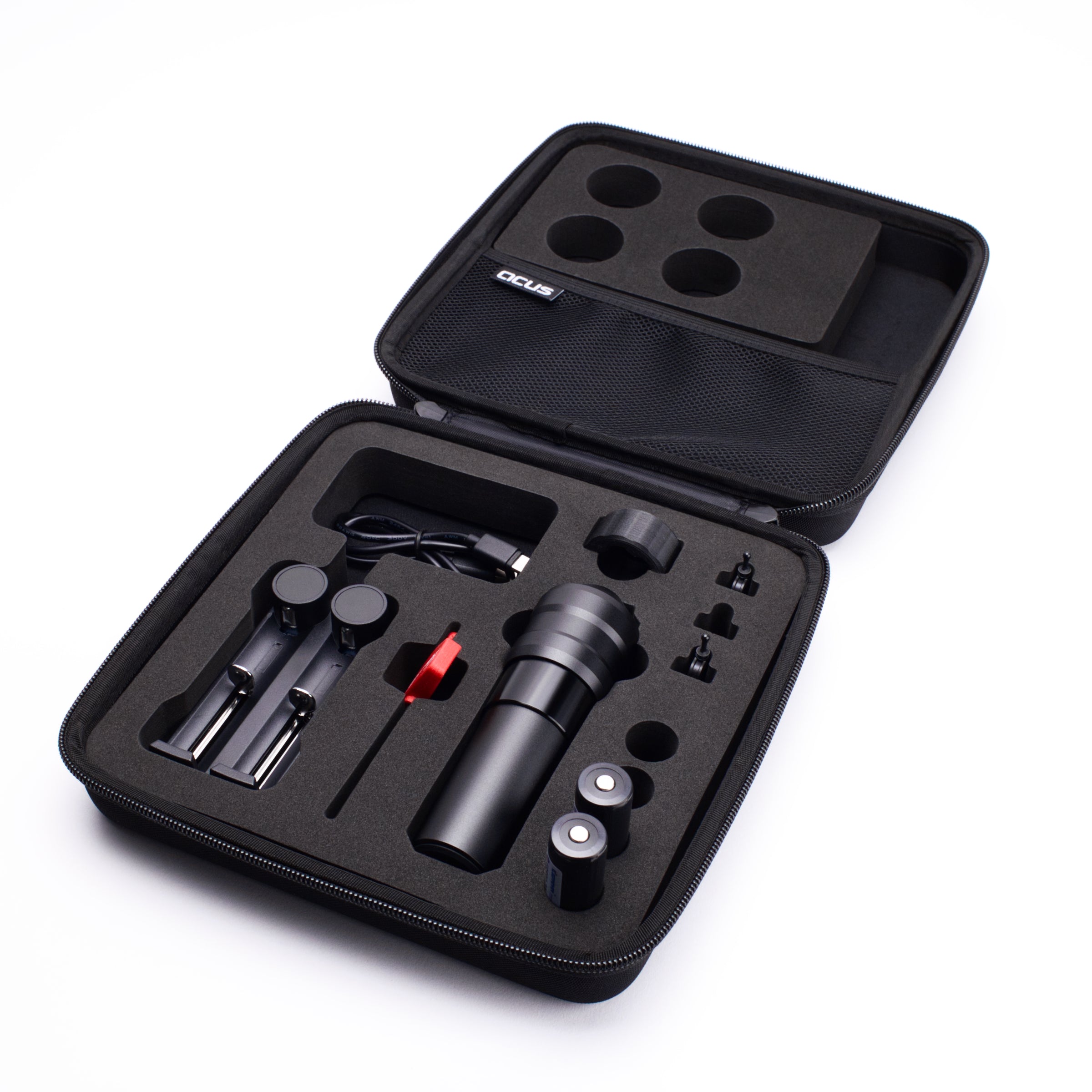

The M1 comes in a practical travel case, equipped with 2 batteries and matching charger, 3 drive heads, tools, instruction manual and a few spare O-rings.

The only difference between the M1 Plus and the M1 is the grip.
The M1 Plus is already equipped with the 40 mm Grip Plus instead of the 33 mm Grip.


Interchangeable drive heads
Everything with one machine!
Change the needle stroke of your machine to suit your style and preferences.
- 3.0 mm: soft & gentle - Build up the layers without overworking the skin
- 3.7 mm: smooth & confident - Lining, packing, and shading with ease
- 4.5 mm: energetic & impressive - Perfect for Traditional or Japanese styles

Intuitive operating and display unit - easy to use
The OLED display shows you all information at a glance

You don't have to decide before buying whether you prefer a machine with a strong or a weak motor... brushless or brushed motor?
The M1 makes your decision easy!
Replace the motor of your machine without removing it, but simply do it via software settings. Change the character of your machine at any time with two button presses in a few seconds

All-Metal brushless motor by Faulhaber
powerful - prcise - reliable
Frequency from 36 - 140 Hz
The latest and best motor you can currently build into a tattoo machine!

Digital motor control system
We have developed and programmed our own control system for the motor, which has never been seen before in the world. It is much more than what is known as Responsive Mode or E-Give on other machines.

Our control system works completely digitally and at a tremendous speed of up to 170 million calculations per second.

Hygienic Concept
One of the most underrated features when it comes to PEN style tattoo machines. The anodised aluminium housing can be completely dismantled.
This makes it possible for the first time to work absolutely cleanly and hygienically.

Lithium-Ion Battery
18500 size
3.7V 2000mAh
2.000.000 strokes per battery charge
The Battery has a standard size that can be purchased for a small price at online battery shops.

Our battery lasts 5 hours with usal settings. If the acus M1 is operating with small needles and at a low frequenzy, it can even run up to 11 hours.

Changing the battery takes only 10 seconds. Your customers will often not notice it.

The battery is fully charged in 3 hours with the supplied charger, so it is charged faster than it is discharged during use.

Standard needle cartridges
Compatible with all standard needle cartridges. Adjustable needle depth from 0 to 4.35 mm.
(not all cartridges are suitable for a needle stroke of 4.5 mm)

The M1 weighs a bit less than comparable wireless machines but feels much lighter and its handling is much more agile and free. This is because the engine with its rotating masses sits exactly in the centre of gravity, which is far to the front as possible.

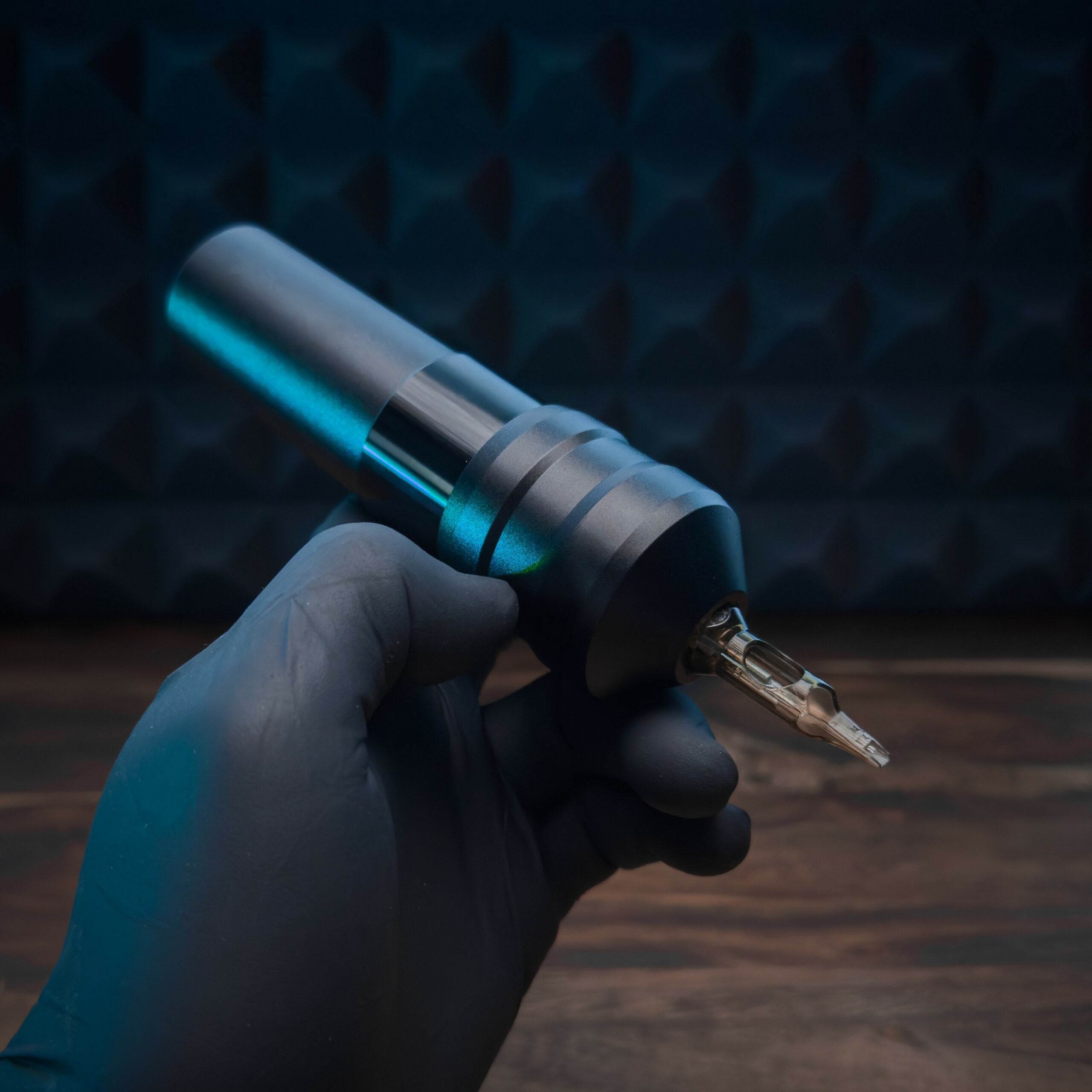

The M1 fits perfectly in almost any hand. The simple and smooth design allows you to choose your grip position freely.


Weight: 0,83 kg
Dimensions: 22 x 22 x 7 cm
Product description: Tattoo machine
Country of Origin: Germany

NOTE: You will need a USB power supply suitable for your country with a voltage of 5 V and a current of at least 2 A.
